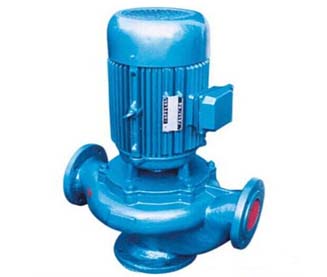

名称Q?/strong>GW型管道式无堵塞排污܇
性能范围Q?/strong>
l构说明
GW型系列无堵塞单道排污늳q出口在同一水^U上, 且规格相?立式l构,占地面积? 甉|与܇同u,设有安装底盘,便于安装E_,叶轮采用??道,h良好的通过性能.
产品特点:
1. 泵ؓ(f)立式单单吸d排污? q出口中心线在同一水^U上, q出口法兰相?故安装拆卸十分方? 占地面积?可安装在\的Q何位|上.
2. 泵与甉|直联同u, 属机?sh)一体化产品,l构紧凑,性能E_.
3. 采用大流道抗堵塞水力部g设计,大大提高污物通过能力,能有效地通过泵口径的5倍纤l物质和直径为܇口径U?0%的固体颗_?
4. 设计合理,配套甉|合理,效率?节能效果显著.
5. 机械密封采用质耐磨_?h耐用,耐磨{特?可以使܇安全q行8000时以上.
6. 水力性能?整机效率?q{噪音?
7. 在电(sh)机风叶端加上防护|?整机可置于室外工?无需机房,可节省大量基?
8. 在规定扬E范围内使用,保证甉|无过?
l构说明
GW型系列无堵塞单道排污늳q出口在同一水^U上, 且规格相?立式l构,占地面积? 甉|与܇同u,设有安装底盘,便于安装E_,叶轮采用??道,h良好的通过性能.
型号意义说明
50GW20-7-0.75
50表示泵进口直?0mm
GW表示道式无堵塞排污?br />
20表示量20m /h
7表示扬程7m
0.75表示甉|功率0.75KW
| GW型管道式无堵塞排污܇ | |||||
| 型号Model | 口径(mm) |
量(m /h) |
扬程(m) | 甉|功率(KW) | 转?r/min) |
| 25GW8-22-1.1 | 25 | 8 | 22 | 1.1 | 2900 |
| 32GW12-15-1.1 | 32 | 12 | 15 | 1.1 | 2900 |
| 40GW15-15-1.5 | 40 | 15 | 15 | 1.5 | 2900 |
| 40GW15-30-2.2 | 40 | 15 | 30 | 2.2 | 2900 |
| 50GW20-7-0.75 | 50 | 20 | 7 | 0.75 | 2900 |
| 50GW10-10-0.75 | 50 | 10 | 10 | 0.75 | 2900 |
| 50GW20-15-1.5 | 50 | 20 | 15 | 1.5 | 2900 |
| 50GW15-25-2.2 | 50 | 15 | 25 | 2.2 | 2900 |
| 50GW18-30-3 | 50 | 18 | 30 | 3 | 2900 |
| 50GW25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 |
| 50GW20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 |
| 65GW25-15-2.2 | 65 | 25 | 15 | 2.2 | 2900 |
| 65GW37-13-3 | 65 | 37 | 13 | 3 | 2900 |
| 65GW25-30-4 | 65 | 25 | 30 | 4 | 2900 |
| 65GW30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 |
| 65GW35-50-11 | 65 | 35 | 50 | 11 | 2900 |
| 65GW35-60-15 | 65 | 35 | 60 | 15 | 2900 |
| 80GW40-7-2.2 | 80 | 40 | 7 | 2.2 | 1450 |
| 80GW43-13-3 | 80 | 43 | 13 | 3 | 2900 |
| 80GW40-15-4 | 80 | 40 | 15 | 4 | 2890 |
| 80GW65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 |
| 100GW80-10-4 | 100 | 80 | 10 | 4 | 1450 |
| GW型管道式无堵塞排污܇ | |||||
| 型号Model | 口径(mm) |
量(m /h) |
扬程(m) | 甉|功率(KW) | 转?r/min) |
| 100GW110-10-5.5 | 100 | 110 | 10 | 5.5 | 1450 |
| 100GW100-15-7.5 | 100 | 100 | 15 | 7.5 | 1450 |
| 100GW85-20-7.5 | 100 | 85 | 20 | 7.5 | 1450 |
| 100GW100-25-11 | 100 | 100 | 25 | 11 | 1450 |
| 100GW100-30-15 | 100 | 100 | 30 | 15 | 1450 |
| 100GW100-35-18.5 | 100 | 100 | 35 | 18.5 | 1450 |
| 125GW130-15-11 | 125 | 130 | 15 | 11 | 1450 |
| 125GW130-20-15 | 125 | 130 | 20 | 15 | 1450 |
| 150GW145-9-7.5 | 150 | 145 | 9 | 7.5 | 1450 |
| 150GW180-15-15 | 150 | 180 | 15 | 15 | 1450 |
| 150GW180-20-18.5 | 150 | 180 | 20 | 18.5 | 1450 |
| 150GW180-25-22 | 150 | 180 | 25 | 22 | 1450 |
| 150GW180-30-30 | 150 | 180 | 30 | 30 | 1450 |
| 150GW200-30-37 | 150 | 200 | 30 | 37 | 1450 |
| 200GW300-7-11 | 200 | 300 | 7 | 11 | 970 |
| 200GW250-11-15 | 200 | 250 | 11 | 15 | 970 |
| 200GW400-10-22 | 200 | 400 | 10 | 22 | 1450 |
| 200GW400-13-30 | 200 | 400 | 13 | 30 | 1450 |
| 200GW250-15-18.5 | 200 | 250 | 15 | 18.5 | 1450 |
| 200GW300-15-22 | 200 | 300 | 15 | 22 | 1450 |
| 200GW250-22-30 | 200 | 250 | 22 | 30 | 1450 |
| 200GW350-25-37 | 200 | 350 | 25 | 37 | 1450 |
| GW型管道式无堵塞排污܇ | |||||
| 型号Model | 口径(mm) |
量(m /h) |
扬程(m) | 甉|功率(KW) | 转?r/min) |
| 200GW400-30-45 | 200 | 400 | 30 | 45 | 1450 |
| 250GW600-9-30 | 250 | 600 | 9 | 30 | 980 |
| 250GW600-12-37 | 250 | 600 | 12 | 37 | 1450 |
| 250GW600-15-45 | 250 | 600 | 15 | 45 | 1450 |
| 250GW600-20-55 | 250 | 600 | 20 | 55 | 1450 |
| 250GW600-25-75 | 250 | 600 | 25 | 75 | 1450 |
| 250GW800-12-45 | 250 | 800 | 12 | 45 | 1450 |
| 300GW500-15-45 | 300 | 500 | 15 | 45 | 980 |
| 300GW800-15-55 | 300 | 800 | 15 | 55 | 980 |
| 300GW600-20-55 | 300 | 600 | 20 | 55 | 980 |
| 300GW800-20-75 | 300 | 800 | 20 | 75 | 980 |
| 300GW950-20-90 | 300 | 950 | 20 | 90 | 980 |
| 300GW1000-25-110 | 300 | 1000 | 25 | 110 | 980 |
| 350GW1100-10-55 | 350 | 1100 | 10 | 55 | 980 |
| 350GW1500-15-90 | 350 | 1500 | 15 | 90 | 980 |
| 350GW1200-18-90 | 350 | 1200 | 18 | 90 | 980 |
| 350GW1100-28-132 | 350 | 1100 | 28 | 132 | 740 |
| 350GW1000-36-160 | 350 | 1000 | 36 | 160 | 740 |
| 400GW1500-10-75 | 400 | 1500 | 10 | 75 | 980 |
| 400GW2000-15-132 | 400 | 2000 | 15 | 132 | 740 |
| 400GW1700-22-160 | 400 | 1700 | 22 | 160 | 740 |
| 400GW1500-26-160 | 400 | 1500 | 26 | 160 | 740 |
| 400GW1700-30-200 | 400 | 1700 | 30 | 200 | 740 |
| 400GW1800-32-250 | 400 | 1800 | 32 | 250 | 740 |
