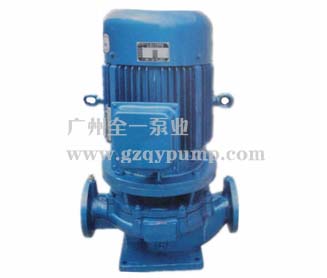

名称Q?/strong>GL型立式单U܇ 适用于空?采暖 冷冻pȝ的液体@环和供水增压
性能范围Q?/strong>
输送介质ؓ清水或物理化学性质cM清水的其他液体；
量范围Q?.5m/h-360m/h
扬程Q≤140m
介质温度Q?C-80C (?05C配耐高温机械密）
工作压力Q܇的扬E?00m以下Q压力≤1.6Mpa;늚扬程110-140mQ压力≤2.0Mpa;吸入压力?.6Mpa 需在订货合同上注明
甉|Q?80V 50HZ
产品概述Q?br />
GL型立式单U܇是国内广泛用的dc新型܇的性能Q结构，外观Q可靠性方面作了较大的改进。目的是方便用户使用Q提高用寿命?br />
用途：
GL型立式单U܇适用于空调，采暖Q冷ȝl的液体循环和供_增压?br />
特点Q?br />
采用加长轴电机，叶轮直接装在甉|轴上Q机电一体化Q减振动及q行噪声?br />
늚q出口径相同Qƈ在同一直线上。能像阀门一样安装在\M位置Q且没有底板Q늚安装单方便，E_?br />
Z提高轴承的用寿命，甉|轴承比同性能的电u承加大一?br />
甉|轴承压盖处设|了加a孔，当u承缺油，噪声增大Q可向u承加沏V?nbsp;
使用条gQ?br />
输送介质ؓ清水或物理化学性质cM清水的其他液体；
量范围Q?.5m/h-360m/h
扬程Q≤140m
介质温度Q?C-80C (?05C配耐高温机械密）
工作压力Q܇的扬E?00m以下Q压力≤1.6Mpa;늚扬程110-140mQ压力≤2.0Mpa;吸入压力?.6Mpa 需在订货合同上注明
甉|Q?80V 50HZ
型号意义说明
100GL-108-50
100表示泵进出水口径100mm
GL表示立式单?br />
108表示量108m/h
50表示扬程50m
| GL型立式单U܇ | ||||
| 型号Model | 量(m /h) | 扬程(m) | 甉|功率(KW) | 转?r/min) |
|
40GL12.5-15 |
7.2 12.5 15 |
16 15 13 |
1.1 | 2900 |
| 40GL12.5-20 |
7.2 12.5 15 |
20.5 20 18 |
1.5 | 2900 |
| 40GL12.5-30 |
7.2 12.5 15 |
30.5 30 27 |
2.2 | 2900 |
| 40GL12.5-40 |
7.2 12.5 15 |
41 40 37 |
3 | 2900 |
| 40GL12.5-50 |
7.2 12.5 15 |
51 50 50 |
4 | 2900 |
| 40GL12.5-60 |
7.2 12.5 15 |
61 60 57 |
5.5 | 2900 |
| 40GL12.5-70 |
7.2 12.5 15 |
72 70 67 |
7.5 | 2900 |
| 40GL12.5-80 |
7.2 12.5 15 |
81 80 78 |
11 | 2930 |
| 50GL18-17 |
10.8 18 21.6 |
18.4 17 15 |
1.5 | 2900 |
| 50GL18-20 |
10.8 18 21.6 |
21 20 18.5 |
2.2 | 2900 |
| 50GL18-30 |
10.8 18 21.6 |
32 30 27 |
3 | 2900 |
| 50GL18-40 |
10.8 18 21.6 |
41 40 38 |
4 | 2900 |
| 50GL18-50 |
10.8 18 21.6 |
51 50 48 |
5.5 | 2900 |
| 50GL18-60 |
10.8 18 21.6 |
61 60 57 |
7.5 | 2900 |
| 50GL18-70 |
10.8 18 25.2 |
72 70 64 |
11 | 2930 |
| 50GL18-80 |
10.8 18 25.2 |
82 80 74 |
15 |
2930 |
| 65GL20-10 |
12.5 20 23 |
11 10 8.5 |
1.1 | 2900 |
| 65GL20-15 |
12.5 20 23 |
17 15 14 |
1.5 | 2900 |
| 65GL25-20 |
15 25 30 |
21 20 18 |
2.2 | 2900 |
| 65GL25-30 |
15 25 30 |
31.5 30 27 |
4 | 2900 |
| 65GL25-40 |
15 25 30 |
41 40 35 |
5.5 | 2900 |
| 65GL25-50 |
15 25 30 |
51 50 45.5 |
7.5 | 2900 |
| 65GL25-60 |
15 25 30 |
60.5 60 58 |
11 | 2930 |
| 65GL25-70 |
14 23.4 28 |
72 70 68 |
11 | 2930 |
| 65GL25-80 |
15 25 30 |
82 80 78 |
15 | 2930 |
| 65GL25-90 |
15 25 30 |
91 90 83 |
18.5 | 2930 |
| 65GL25-100 |
15 25 30 |
102 100 95 |
18.5 | 2930 |
| 65GL25-110 |
15 25 30 |
112 110 105 |
22 | 2950 |
| 65GL25-125 |
15 25 36 |
126 125 123 |
30 | 2950 |
| GL型立式单U܇ | ||||
| 型号Model | 量(m /h) | 扬程(m) | 甉|功率(KW) | 转?r/min) |
| 65GL36-32 |
21.6 36 43.2 |
34 32 28 |
5.5 | 2900 |
| 65GL36-40 |
21.6 36 43.2 |
42 40 34 |
7.5 | 2900 |
| 65GL36-50 |
21.6 36 43.2 |
52 50 45 |
11 | 2930 |
| 65GL36-60 |
21.6 36 43.2 |
62 60 55 |
11 |
2930 |
| 65GL36-70 |
21.6 36 43.2 |
72 70 67 |
15 | 2930 |
| 65GL36-80 |
21.6 36 43.2 |
82 80 77 |
18.5 | 2930 |
| 65GL36-90 |
21.6 36 43.2 |
92 90 83 |
22 | 2950 |
| 65GL36-100 |
21.6 36 43.2 |
102 100 91 |
22 | 2950 |
| 65GL36-110 |
21.6 36 43.2 |
111 110 103 |
30 | 2950 |
| 65GL36-120 |
21.6 36 43.2 |
121 120 113 |
30 | 2950 |
| 65GL36-135 |
21.6 36 43.2 |
136 135 129 |
37 | 2950 |
| 80GL42-10 |
25 42 50.4 |
11 10 9 |
2.2 | 2900 |
| 80GL42-12.5 |
25 42 50.4 |
13.5 12.5 11.5 |
3 | 2900 |
| 80GL50-16 |
30 50 60 |
17.5 16 14.5 |
4 | 2900 |
| 80GL54-20 |
30 54 64.8 |
22 20 19 |
5.5 | 2900 |
| 80GL54-30 |
30 54 64.8 |
33 30 28 |
7.5 | 2900 |
| 80GL54-40 |
30 54 64.8 |
42 40 37 |
11 | 2930 |
| 80GL54-50 |
30 54 64.8 |
52 50 48 |
15 | 2930 |
| 80GL54-60 |
30 54 64.8 |
63 61 60 |
18.5 | 2930 |
| 80GL54-70 |
30 54 64.8 |
71 70 63 |
18.5 | 2950 |
| 80GL54-80 |
30 54 64.8 |
81 80 73 |
22 | 2950 |
| 80GL54-90 |
30 54 64.8 |
92 90 85 |
30 | 2950 |
| 80GL54-100 |
30 54 64.8 |
102 100 95 |
30 | 2950 |
| 80GL54-110 |
30 54 64.8 |
112 110 105 |
37 | 2950 |
| 80GL54-120 |
30 54 64.8 |
122 120 115 |
37 | 2950 |
| 100GL72-40 |
43.2 72 90 |
41 40 37 |
15 |
2930 |
| 100GL72-50 |
43.2 72 90 |
51 50 47 |
18.5 | 2930 |
| 100GL72-60 |
43.2 72 90 |
61 60 57 |
22 |
2950 |
| 100GL72-70 |
43.2 72 86.4 |
71 70 68 |
30 | 2950 |
